product description:
For the drying of zirconia, it is necessary to control the drying temperature. The finished product requires uniform particles and low final water. It has high requirements for the cleaning and sanitization of the dryer, otherwise it will affect the whiteness of the finished product. According to the characteristics of the material, the special zirconia spray dryer designed by the foundry drying adopts the principle of spray drying, which has the characteristics of fully utilizing thermal energy, stable production and excellent product quality.

GPG zirconia special spray dryer equipment features:
1. Adopt advanced drying technology and high drying efficiency.
During the drying process, the droplets and the hot air run in the opposite direction, which increases the relative speed between the material and the air, so that the water is quickly evaporated and the drying efficiency is improved.
2, the air is clean, the interior is clean, to ensure the color of the product.
The interior of the equipment is made of stainless steel and is polished to avoid material adhesion. The air inlet has a special high temperature resistant air filter to clean the air entering the drying tower and prevent the material from being polluted, thus ensuring the quality of the product.
3. The drying process is stable and the degree of automation is high.
The special zirconia spray dryer designed by our company adopts high-quality high-pressure wear-resistant nozzle and stepless speed regulation high-pressure feed pump, which can adjust the feed pressure and feed speed in a wide range, change the atomization effect, and thus make the product granularity. It can be effectively controlled; the advanced hot air distributor is used to make the hot air flow vertically downward, which is beneficial to improve the drying efficiency and product quality; the automatic control system can adopt the PLC program control system loop and use the advanced fuzzy control method, according to the relevant The data sets the corresponding program, which automatically tracks and controls the relevant parameters such as inlet air temperature, outlet air temperature, conveying speed, operating pressure, etc. The temperature can be controlled within ±5 °C to achieve the purpose of automatic stability control.
4, high powder collection rate, reducing material loss.
The spray dryer uses a high-efficiency receiver to increase the powder collection rate and increase the dust removal system to ensure environmental compliance

Our company independently develops and manufactures special zirconia dryers according to the performance characteristics of zirconia. Welcome to inquire about relevant core technologies!

•

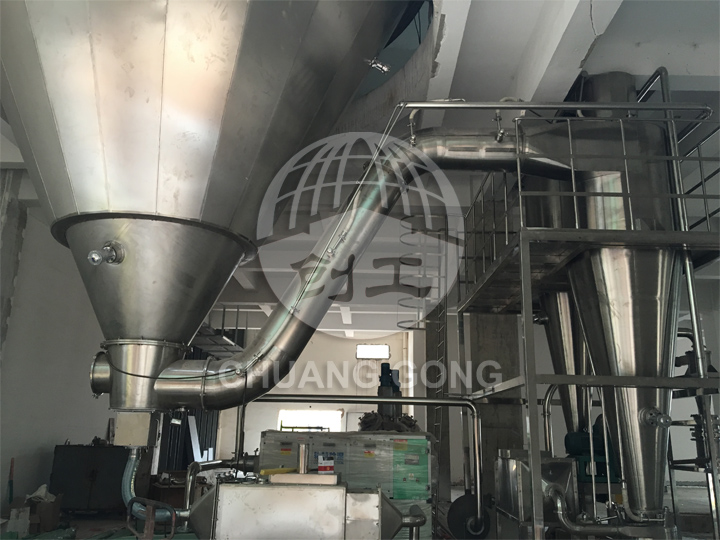

  GPG zirconia special spray dryer
•

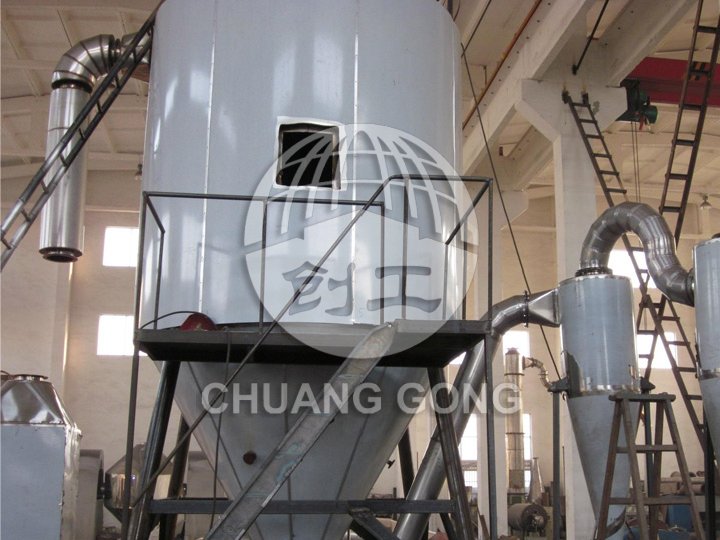

  GPG zirconia special spray dryer
•

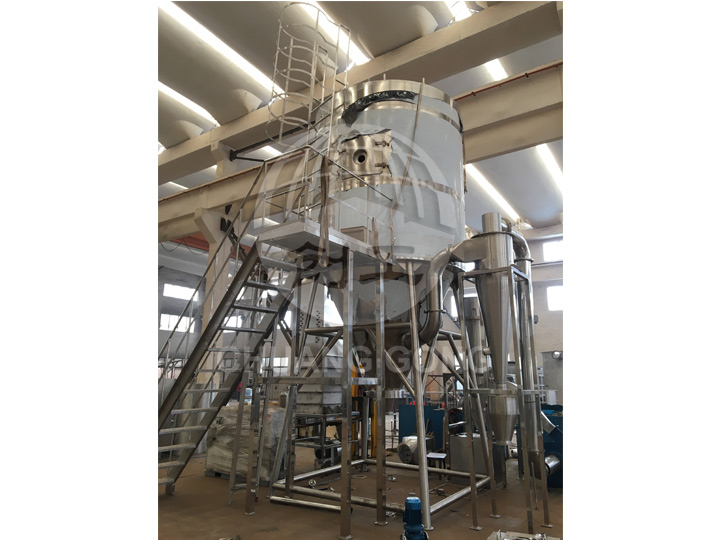

  GPG zirconia special spray dryer
•
  GPG zirconia special spray dryer
