Product introduction:
The high-efficiency coating machine is an efficient, energy-saving, safe and clean electromechanical integration device for organic film coating, water-soluble film coating, slow and controlled release coating for tablets, pills and candy. The coating machine is suitable for the pharmaceutical, chemical, food and other industries. According to the heat exchange efficiency, it can be divided into two types: a perforated coating machine and a non-porous coating machine. According to the production capacity, it is divided into two types: production type and experimental type.

Application range:
Microcapsule coating, hot melt coating, melt cooling coating, hot melt granulation coating, and the like.

working principle:
By rotating the pot clockwise, the sugar-coated tablets are tumbling and rubbing in the pot, and the sugar-coated powder is evenly distributed on all the tablets by hand pouring the sugar-coated powder. The electric blower is attached and the air outlet tube is inserted into the ball. It can be heated, and the blower removes the surface moisture of the tablet by hot air to the inner layer of the pan to obtain a rigid sugar-coated tablet.

Features:
1. The control system consisting of PLC and HMI is reasonable in design and flexible in programming. It can adapt to various pharmaceutical process needs, work reliably, stable performance and meet GMP requirements.

2. Under the action of the streamlined baffle stirrer, the plain film flips smoothly and frequently exchanges, eliminates the phenomenon that the plain film falls from the height and collides, eliminates the debris and the edge, and improves the yield. The surface of the deflector is narrow, which avoids the adhesion of the dressing on the surface, saves the dressing and improves the quality of the medicine.

3. Constant pressure variable peristaltic pump, the return tube is eliminated. The radius of gyration of the roller changes with pressure, the output slurry and the amount of spray are automatically balanced, the atomization effect is stabilized, the spray system is simplified, the clogging of the spray gun is prevented, the dressing is saved, and the cleaning is simple and has no dead angle.

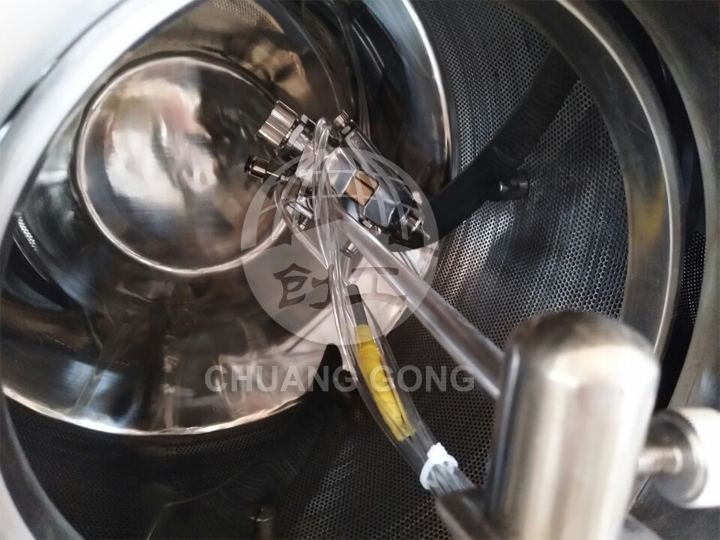

4. The spray gun designed and manufactured for the coating has uniform atomization and large spray surface. The universal adjustable nozzle is not affected by the quantity; the spray gun is blocked and the cleaning mechanism can continuously carry out the coating, shortening the coating time and saving. Coating dressing.

•

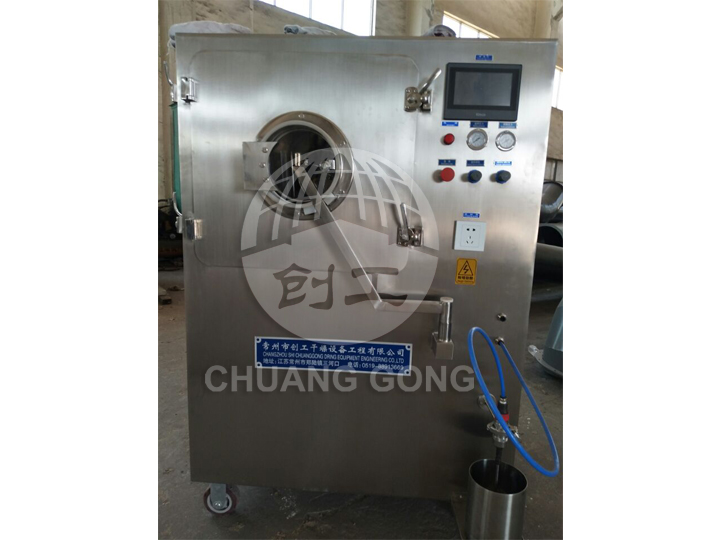

  Coating machine
•

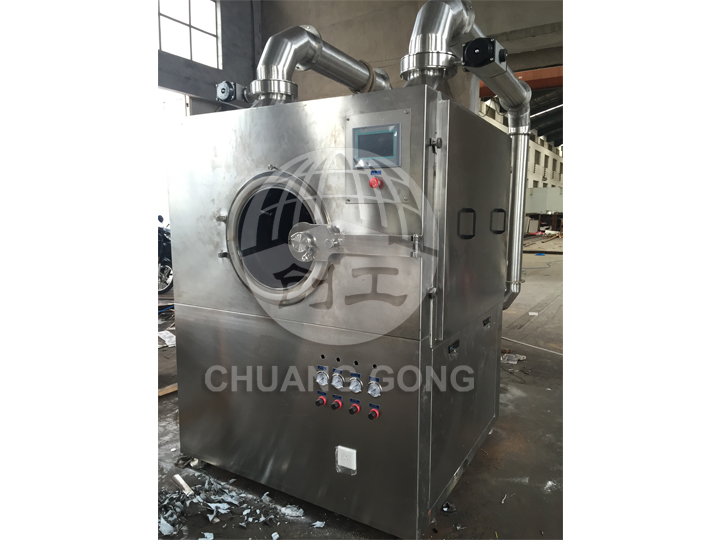

  Coating machine
•
  Coating machine
•

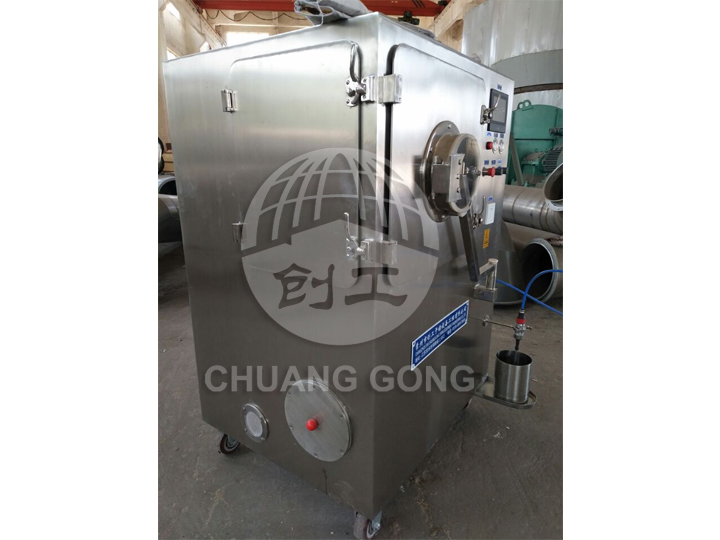

  Coating machine
•

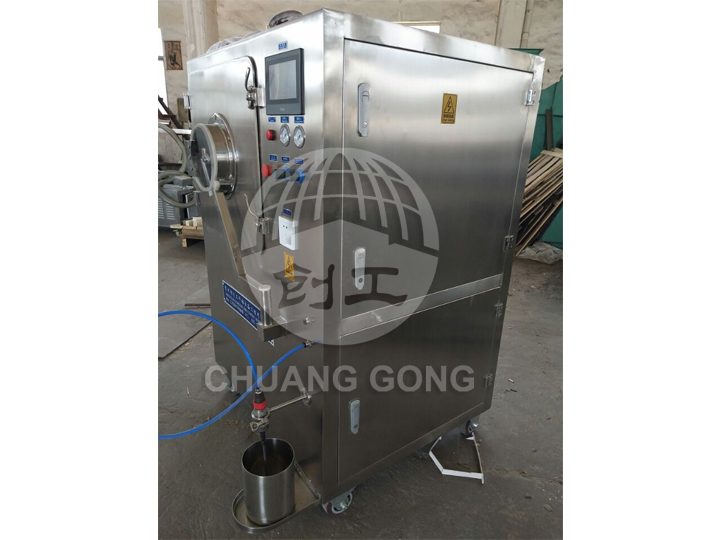

  Coating machine
•

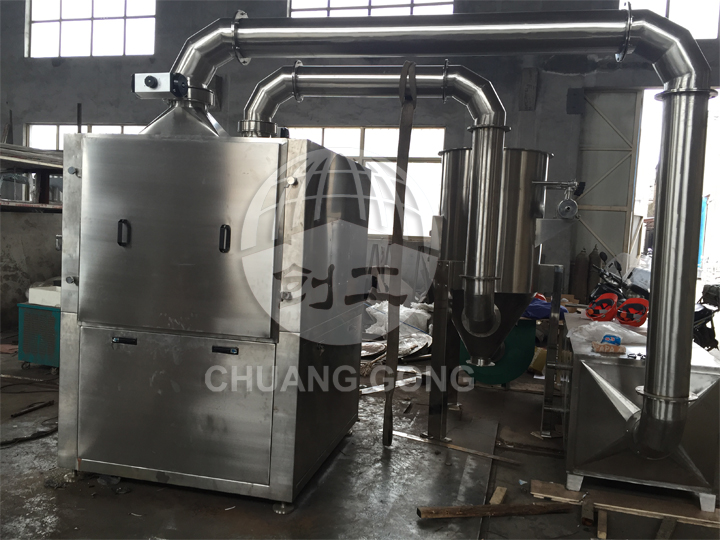

  Coating machine
•

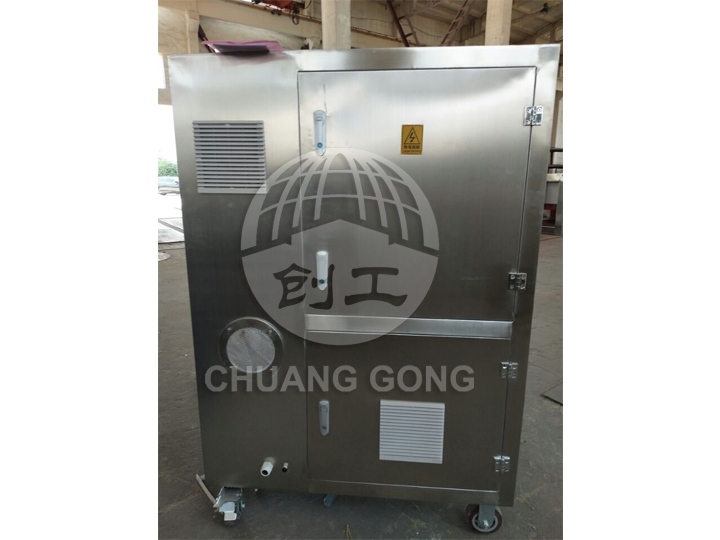

  Coating machine
