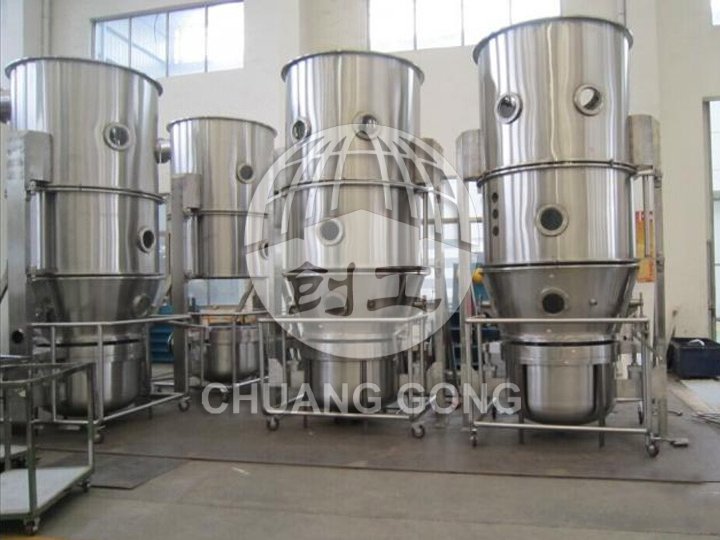

FL one-step granulator dryer
Application field
◎Pharmaceutical granulation and coating
Granulation: tablet granules, granules, capsules.
Coating: granules, pellet protective layer, color preparation, sustained release, film, enteric coating.
◎Food granulation and coating
Sugar, coffee, cocoa powder, cream, powdered juice, amino acids, seasonings, puffed foods.
◎ pesticide, pigment pigment, dye granulation
◎ powder, granule, block material drying
Performance characteristics
◎ Through powder granulation, improve fluidity and reduce dust flying;
◎ Improve the solubility of the powder by granulation;
◎ mixing - granulation - drying - completed in one machine (one-step granulation);
◎Using anti-static filter material, the equipment is safe to operate;
◎Binder atomizer adopts multi-fluid spray gun, the fog particles are uniform, and the qualified rate of finished products is greatly improved;
◎The equipment has no dead angle, the loading and unloading material is light and fast, and it is rinsed clean.

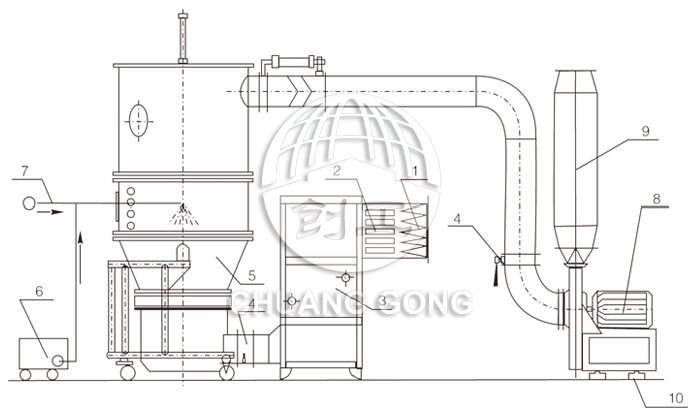

Schematic
1. Medium efficiency filter 2. Sub-high efficiency filter 3. Heater 4. Air control valve 5. Fluidized bed 6. Infusion pump 7. Compressed air 8. Induced draft fan 9. Silencer 10. Shock absorber
Technical specifications
| specification | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
| capacity | 12 | 22 | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1000 | 1500 |
| Processing capacity | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
| Fan power | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 |
| Steam consumption | 12 | 23 | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
| Compressed air consumption | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
| noise | （Fan isolation installation）≤75 | |||||||||||
| Dimensions |
1.0 ×0.55 ×1.8 |
1.2 ×0.6 ×2.1 |
1.25 ×0.9 ×2.1 |
1.6 ×0.9 ×2.3 |
1.65 ×1.1 ×2.4 |
1.85 ×1.25 ×3 |
1.85 ×1.25 ×3 |
2.2 ×1.65 ×3.1 |
2.27 ×1.72 ×3.1 |
2.34 ×1.9 ×3.5 |
2.8 ×1.9 ×3.8 |
3 ×2.55 ×4.2 |
Note: FG does not have a granulation part
-
