working principle
This machine is a novel horizontal intermittent vacuum drying equipment. The wet material is evaporated by conduction. The scraper stirrer continuously removes the material on the hot surface and forms a circulating flow in the container. After the water evaporates, it is extracted by the vacuum pump. .
Performance characteristics
◎This machine adopts large-area interlayer heating method with large heat transfer surface and high thermal efficiency.
◎ This machine is equipped with agitation to make the material form a continuous circulation state in the cylinder, which further improves the uniformity of heat of the material.
◎The machine is set to stir, so that the slurry, paste and paste materials can be dried smoothly.
Adaptable material
◎The following materials are dried in the pharmaceutical, food, chemical and other industries:
◎Applicable to slurry, paste and powder materials;
◎ heat-sensitive materials requiring low temperature drying;
◎Easy to oxidize, explosive, strong irritant, highly toxic materials;
◎Requires the recovery of organic solvent materials.

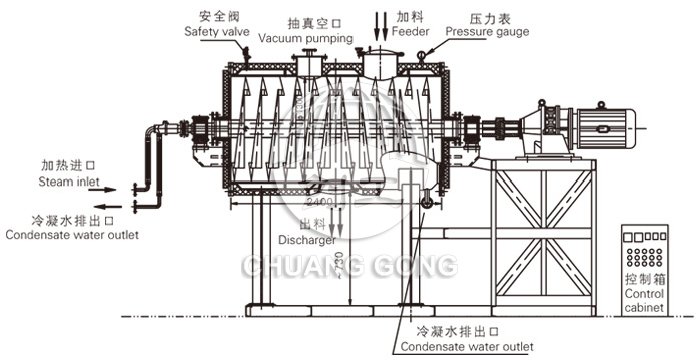

Schematic

Technical specifications

Note: The amount of water evaporation is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90oC, the water evaporation curve is shown in the above figure (for selection). As the product is continuously updated, the parameters are subject to change without prior notice.

•

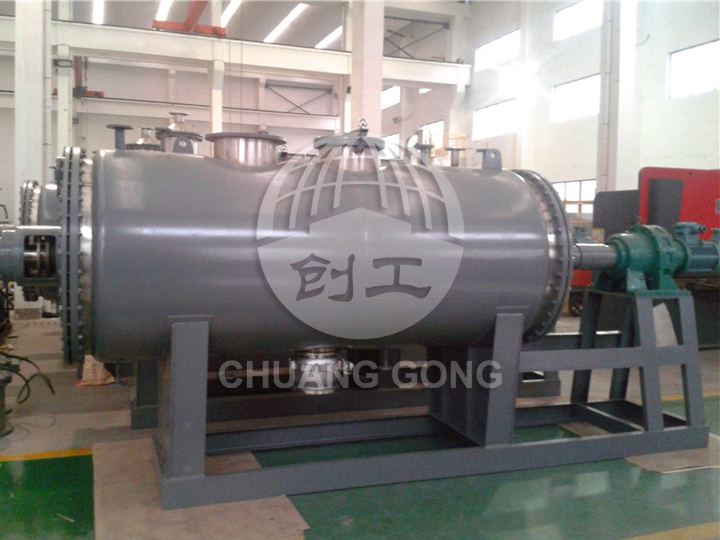

  ZPG vacuum drying machine
•

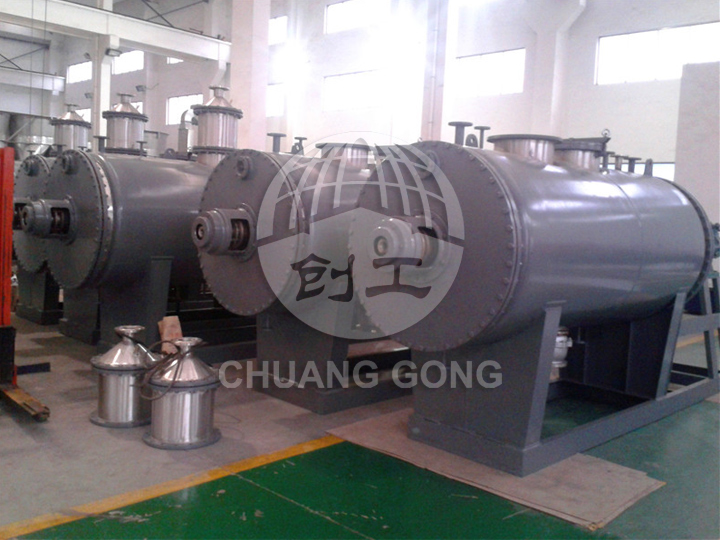

  ZPG vacuum drying machine
•

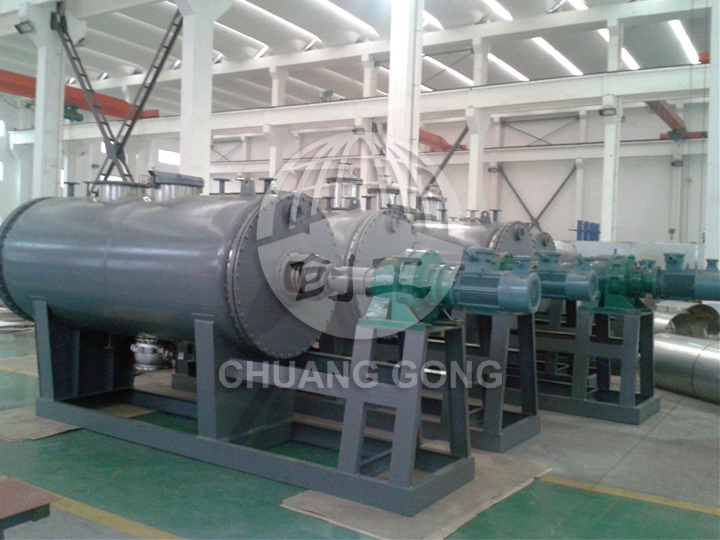

  ZPG vacuum drying machine
•
  ZPG vacuum drying machine
