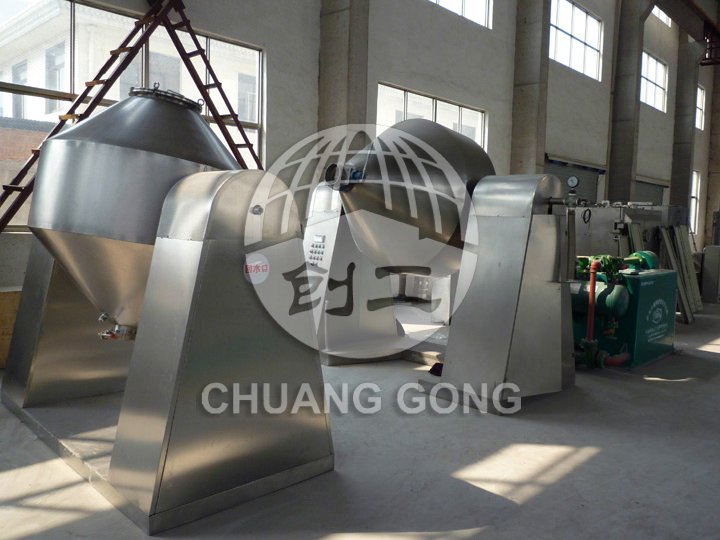

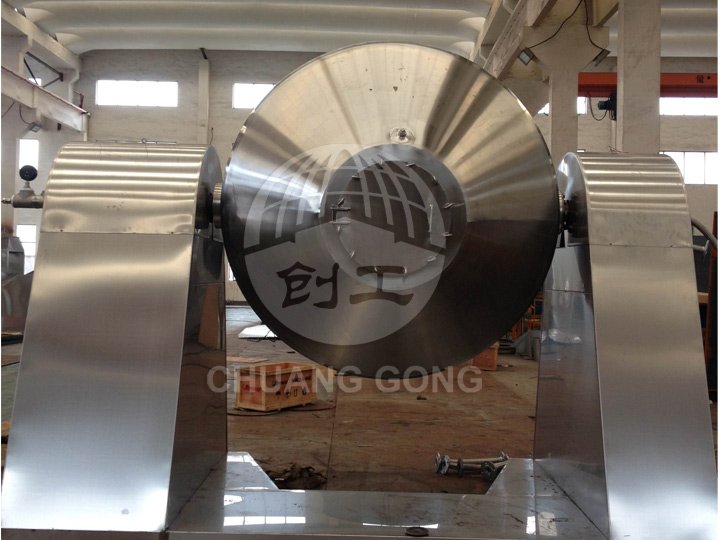

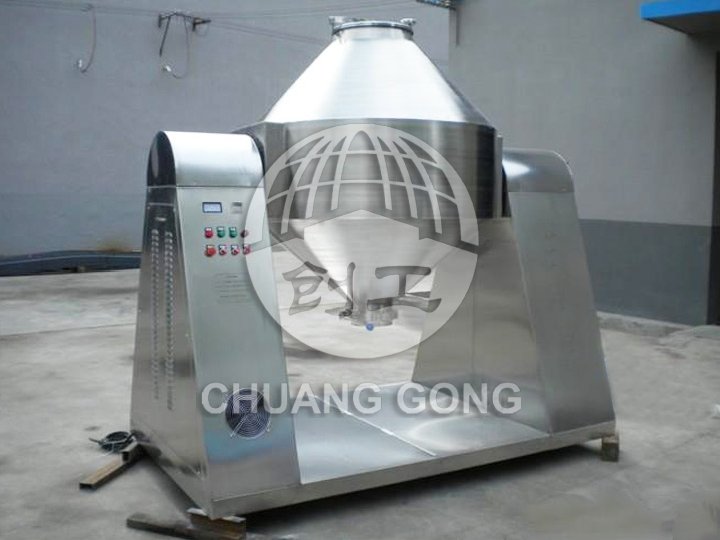

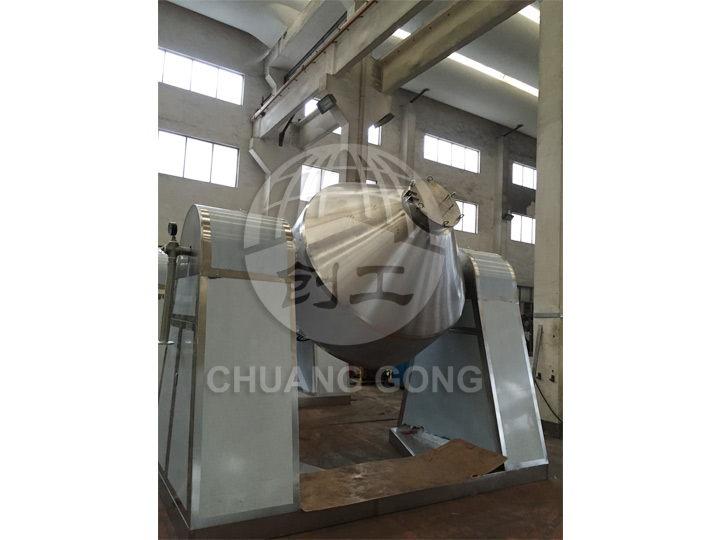

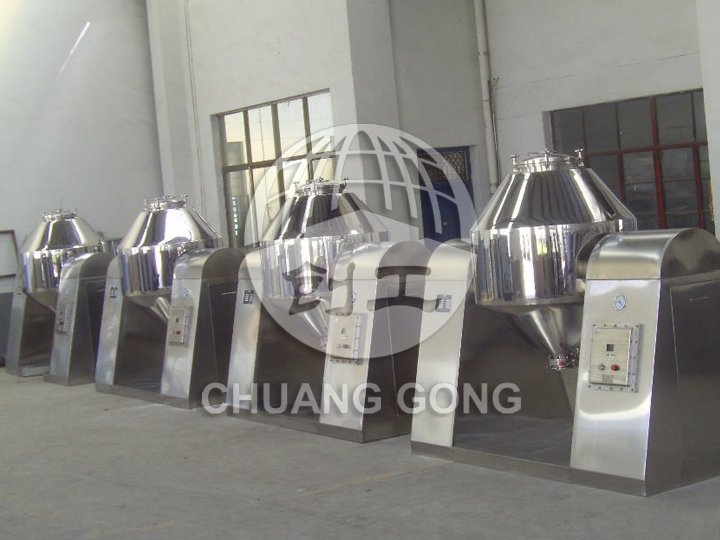

SZG double cone (enamel anti-corrosion) rotary vacuum dryer
product description
SZG double cone vacuum dryer is a new generation drying device developed by our factory in combination with domestic similar product technology. Double cone vacuum adopts belt-chain two elastic connection method, so the equipment runs smoothly. The specially designed process fully embodies the good concentricity of the two shafts. The heat medium and vacuum system use reliable mechanical seals or rotary joints. On this basis, we have developed SZG-A which can be used for both stepless speed regulation and constant temperature control.
As a professional drying equipment manufacturer, our products from high-temperature heat transfer oil are heat medium, medium temperature steam and low temperature hot water. When drying viscous materials, the factory will specially design a “copy board” mechanism or set balls in the tank.
working principle
◎ Heat energy (such as hot water, low-pressure steam or heat-conducting oil) is introduced into the closed interlayer, and heat is transferred to the dried material through the inner casing.
◎ Under the power drive, the tank body rotates slowly, and the materials in the tank are continuously mixed to achieve the purpose of strengthening and drying.
◎The material is in a vacuum state, the vapor pressure drops so that the water (solvent) on the surface of the material reaches a saturated state and evaporates, and is discharged and recovered in time by a vacuum pump. The water (solvent) inside the material continuously permeates, evaporates and discharges to the surface, and the materials are continuously dried in a short time.
Adaptable material
It is suitable for the concentration, mixing, drying and low-temperature drying of powders, granules and fibers in chemical, pharmaceutical and food industries (such as biochemical products). It is more suitable for drying of materials that are easily oxidized, volatile, heat sensitive, strongly irritating, toxic materials and materials that are not allowed to damage crystals.

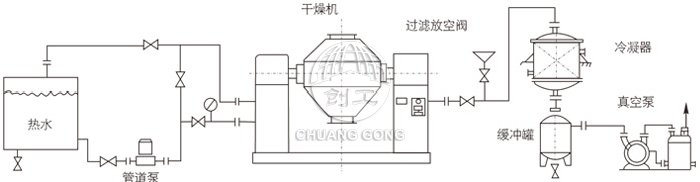

Installation demonstration
Performance characteristics
◎ When the oil is heated. Automatic constant temperature control. Can dry biochemicals
◎ and mineral raw materials, the temperature can be between 20 ~ 160oC.
◎ High thermal efficiency, more than 2 times higher than the average oven.
◎ Indirect heating. The material will not be contaminated and meet the requirements of “GMP”. Equipment maintenance is easy and easy to clean.
◎Recommended process placement demonstration solvent recovery process placement.

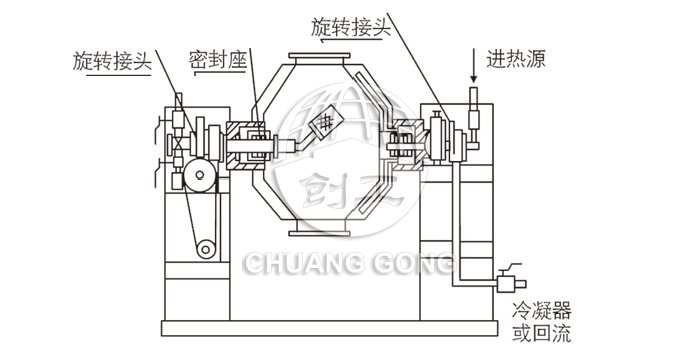

Schematic
Technical specifications
| Name / Specification | 100 | 350 | 500 | 750 | 1000 |
| Tank inner volume | 100 | 350 | 500 | 750 | 1000 |
| Loading volume (L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 |
| Heating area (m2) | 1.16 | 2 | 2.63 | 3.5 | 4.61 |
| Rotating speed (rpm) | 4 - 6 | ||||
| Motor Power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 |
| Long floor space×width(mm) | 2160×800 | 2260×800 | 2350×800 | 2560×1000 | 2860×1300 |
| Swing height(mm) | 1750 | 2100 | 2250 | 2490 | 2800 |
|
In-tank design pressure(Mpa) |
-0.1-0.15 | ||||
| Jacket design pressure(Mpa) | ≤0.3 | ||||
| Operating temperature (oC) | Inside the can≤85 Jacket≤140 | ||||
| When using a condenser, a vacuum pump | 2X-15A | 2X-15A | 2X-30A | 2X-30A | 2X-70A |
| Model, power | 2KW | 2KW | 3KW | 3KW | 505KW |
| When the condenser is not used, the vacuum pump | SK-0.4 | SK-0.8 | SK-0.8 | SK-2.7B | SK-2.7B |
| Model, power | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW |
| weight(kg) | 800 | 1100 | 1200 | 1500 | 2800 |
| Name / Specification | 1500 | 2000 | 3500 | 4500 | 5000 |
| Tank inner volume | 1500 | 2000 | 3500 | 4500 | 5000 |
| Loading volume (L) | ≤750 | ≤1000 | ≤1750 | ≤2250 | ≤2500 |
| Heating area (m2) | 5.58 | 7.5 | 11.2 | 13.1 | 14.1 |
| Rotating speed (rpm) | 4 - 6 | ||||
| Motor Power (kw) | 3 | 4 | 5.5 | 7.5 | 11 |
| Long floor space×width(mm) | 3060×1300 | 3260×1400 | 3760×1800 | 3960×2000 | 4400×2500 |
| Swing height(mm) | 2940 | 2990 | 3490 | 4100 | 4200 |
|
In-tank design pressure (Mpa) |
-0.1-0.15 | ||||
| Jacket design pressure (Mpa) | ≤0.3 | ||||
| Operating temperature (oC) | -0.1-0.15 | ||||
| Vacuum pump when using condenser | JZJX300-8 | JZJX300-4 | JZJX600-8 | JZJX600-4 | JZJX300-4 |
| Model, power | 7KW | 9.5KW | 11KW | 20.5KW | 22KW |
| Vacuum pump without condenser | SK-3 | SK-6 | SK-6 | SK-9 | SK-10 |
| Model, power | 5.5KW | 11KW | 11KW | 15KW | 18.5KW |
| weight(kg) | 3300 | 3600 | 6400 | 7500 | 8600 |
Note: For materials with large volume changes before and after drying, the charging factor can be appropriately increased or decreased.
-
