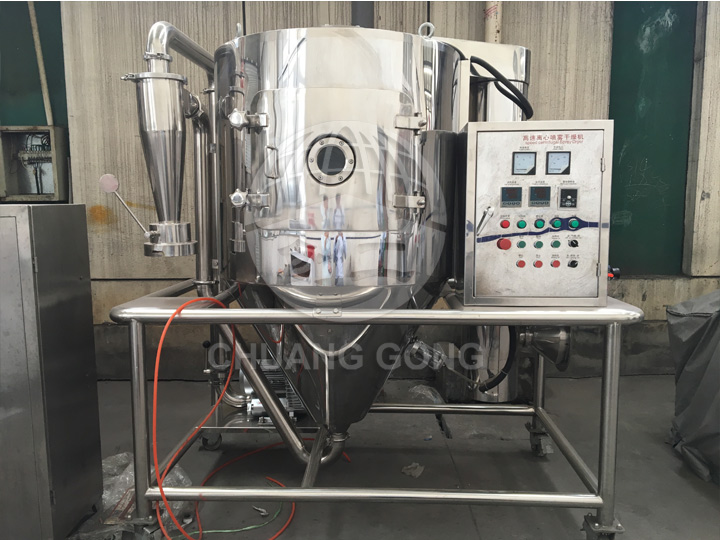

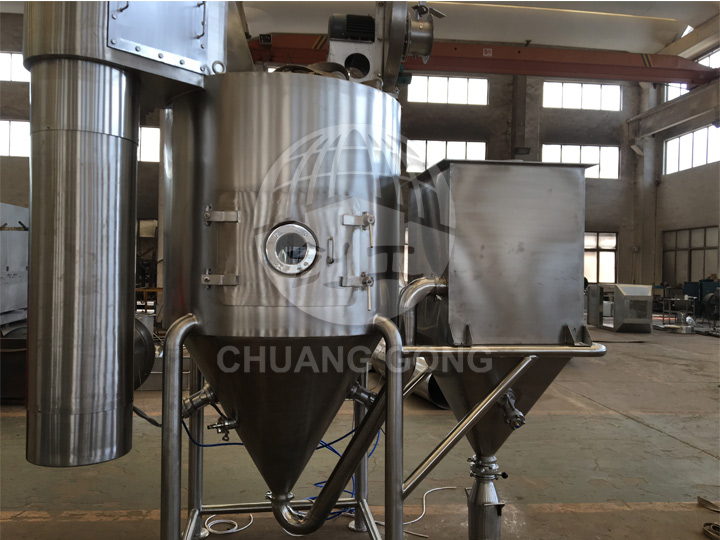

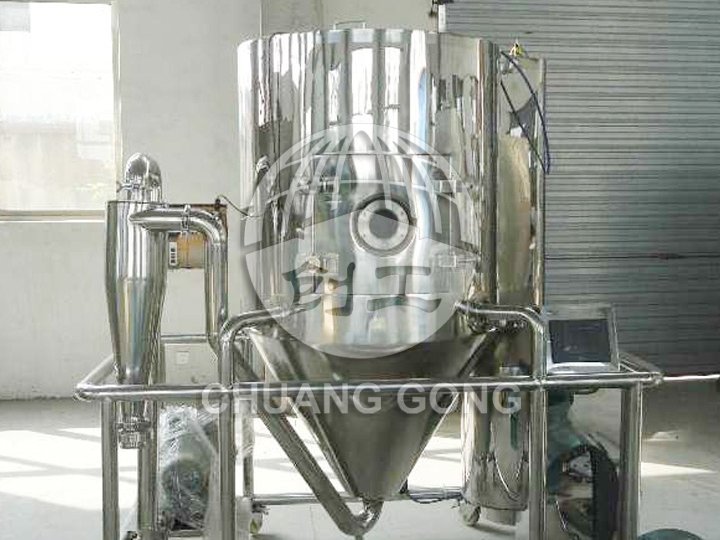

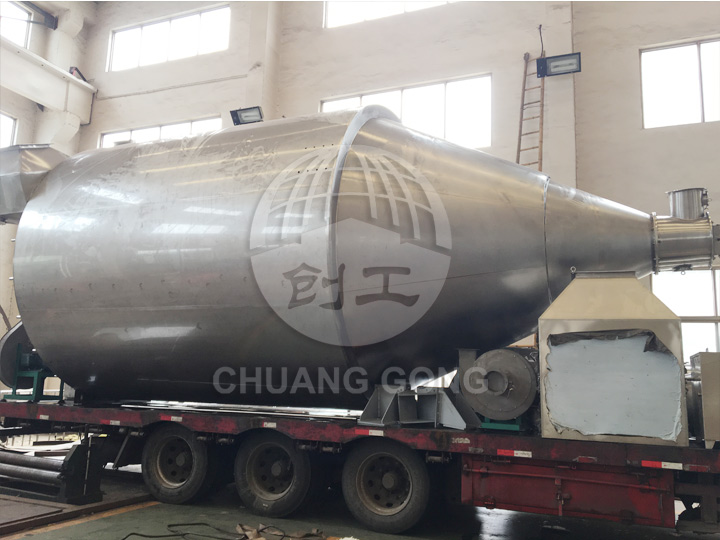

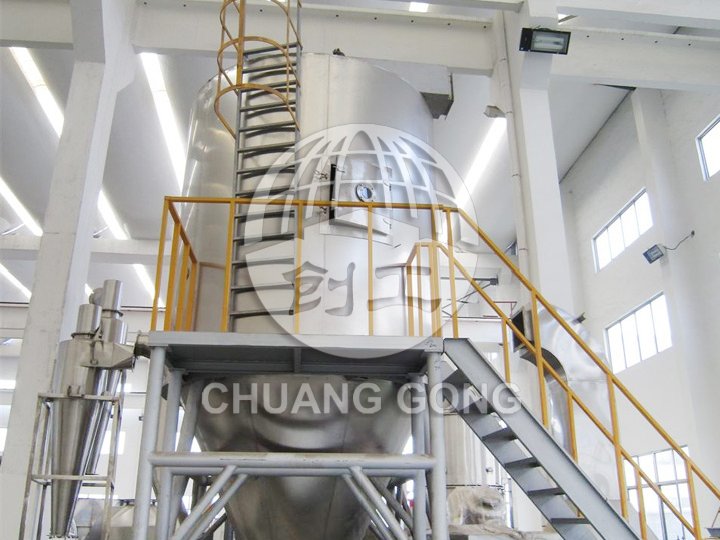

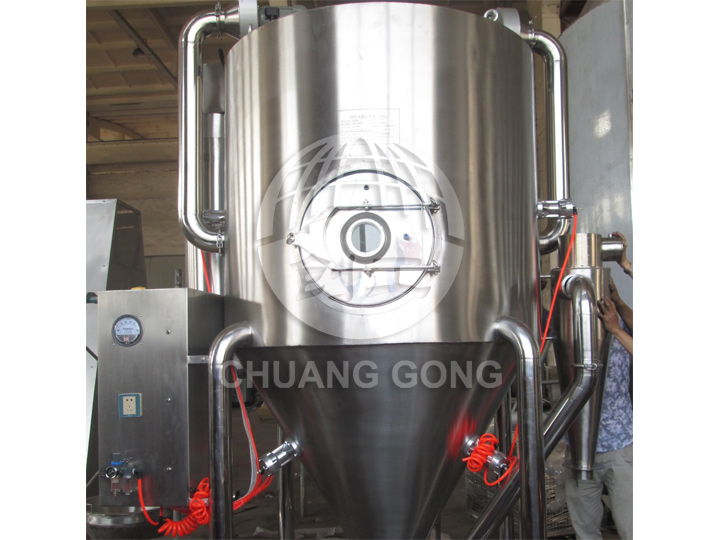

ZLPG series Chinese medicine extract spray dryer
product description
The machine is fully enclosed, all parts are made of stainless steel, equipped with a three-stage purification device, and the filtered air reaches 100,000 levels. The cylinder and the top are equipped with a cold wall device to make the wall temperature <80 ° C, and the drying tower is equipped with a gas brush sweeping device. The traditional Chinese medicine extract powder dried by the machine will not cause coking and deterioration, greatly increase the powder collection rate (more than 95%), and will not cause mixing phenomenon and sticking wall phenomenon.
working principle
The high-speed centrifugal spray device of traditional Chinese medicine extract is the application of centrifugal spray drying technology in the drying of specific materials. It also uses high-speed centrifugal atomizer to disperse the material into a mist, and fully contact with hot air to complete the instant drying to form a powdery finished product. Drying device.

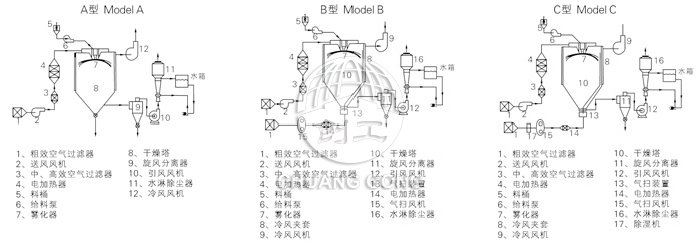

Schematic
Performance characteristics
◎The tower body has a cold air jacket;
◎The tower body is equipped with an automatic rapping device;
◎The tower body and pipeline are equipped with quick opening cleaning holes and drain holes;
◎ can be equipped with automatic control constant temperature feeding tank;
◎ can be equipped with manual high pressure washing tower random accessories;
◎The part in contact with the material is made of stainless steel; (or made of all stainless steel);
◎ Material collection adopts two-stage cyclone dust removal device, or one level
◎ cyclone dust collector and wet dust collector;
◎Inlet air temperature realizes automatic control and continuous device.
◎ can be equipped with air sweeping device.
Technical specifications
| model | ZLPG-15 | ZLPG-20 | ZLPG-25 | ZLPG-32 | ZLPG-38 | ZLPG-40 | ZLPG-47 | ZLPG-52 | ZLPG-58 | |
| Moisture evaporation | 5 | 10 | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| Liquid handling capacity | 6-7 | 12-14 | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |
| Finished product output | 1-2 | 2-4 | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 28-42 | 36.8-56.4 | 55-85 | |
| Wet material solid content | 18-25 | |||||||||
| Finished product moisture content | 3-5 | |||||||||
| Electric power | 36 | 45 | 63 | 99 | 132 | 153 | 204 | 246 | 330 | |
| Heating source | Vapor + electricity | |||||||||
|
Product collection method And one collection efficiency |
One or two points collection: one time collecting BMX ≥95% | |||||||||
| Self-control instrument | Automatic control and adjustment of temperature and pressure, interlock alarm | |||||||||
| Inlet air temperature | 150-200 | |||||||||
| Air temperature | 80-100 | |||||||||
| Dimensions(mm) | length | 5000 | 5500 | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
| width | 3000 | 3500 | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |
| height | 4500 | 4600 | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 | |
Note: ★ The actual dimensions can be determined according to the actual situation of the customer. The above dimensions are for reference only.
★ The above evaporation is the upper limit of evaporation.
-
